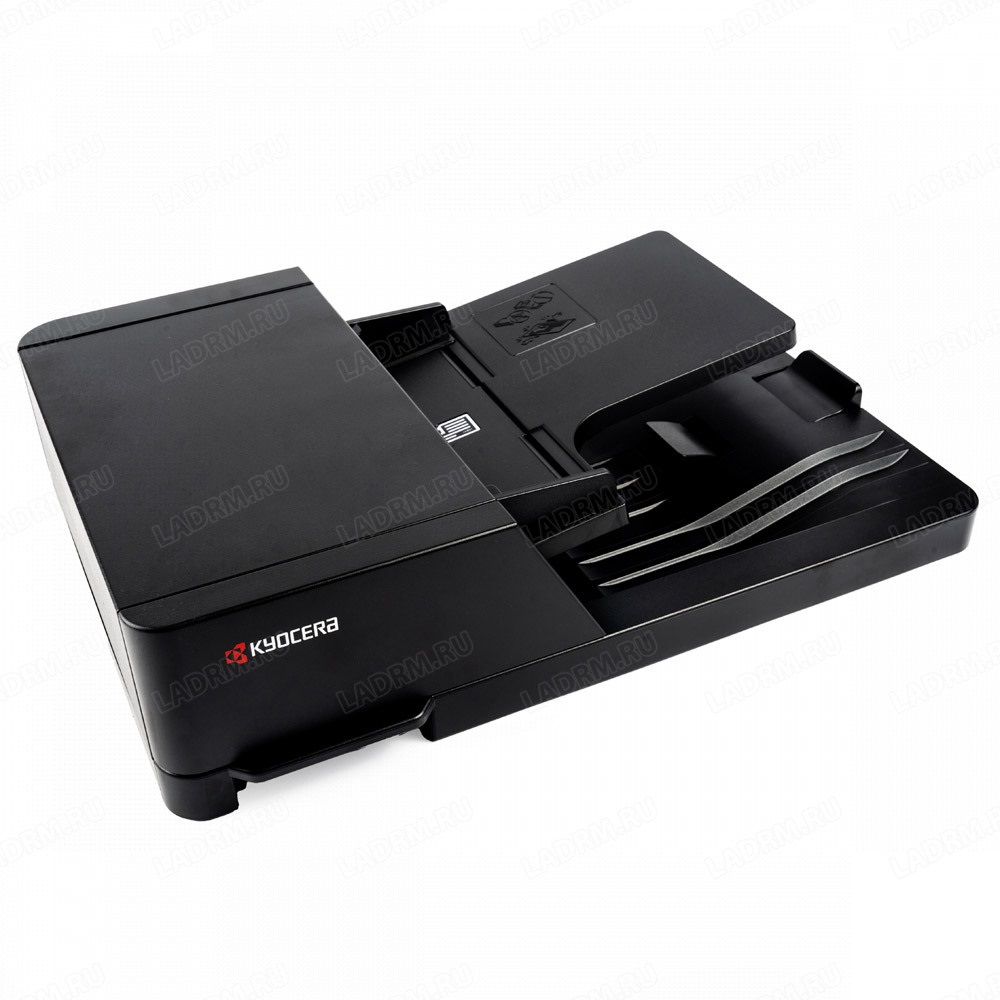

Автоподатчик документов Kyocera MA4500ifx/MA4500ix/MA4500fx/MA4500x

KYOCERA 30C1093010 автоподатчик оригиналов
Name used in Parts list: PARTS DP UNIT SP
Name used in Service Manual: Document Processor
Автоподатчик оригиналов

В состав автоподатчика оригиналов входит:
•30C1018020 COVER FRONT
•30C1018030 COVER REAR
•30C1018010 COVER PF
•3V2NM18180 CUSHION PF
•302S018700 PLATE ORIGINAL L
•302V318010 BASE DP
•302NM18021 HINGE LEFT
•302NM18031 HINGE RIGHT
•30C1018040 STOPPER BASE B
•30C0V18090 STOPPER BASE
•303MX02110 SPONGE ORIGINAL MAT
•303MX02120 CUSHION ORIGINAL MAT B
•30C1094030 PARTS TABLE MAIN ASSY SP
••3V2NM18460 CURSOR FRONT
••3V2NM18470 CURSOR REAR
••5MVG127DN071 GEAR CASSETTE /A-49 CASSETTE A4
••3V2NM18490 LABEL FACE UP
••30C0V18110 COVER CURSOR
••30C0V18100 TABLE MAIN
•302R494420 PARTS PULLEY PICKUP ASSY SP
•302R494430 PARTS PULLEY PAPER FEED ASSY SP
•303R394030 PARTS HOLDER PAD ASSY SP
••302S018420 PAD SEPARATION 1 1
••303LJ07030 MOUNT PAD
••303K507102 PAD FRONT SEP
••302LW07120 CUSHION PAD
••3V2NM18560 CUSHION MOUNT PAD
•303M824260 PULLEY CONVEYING BK
•302H024370 BUSH 6 EW
•302H702590 BUSH SCREW
•303LJ28040 STATIC ELIMINATOR
•303LJ02290 SPRING READING
•3V2NM18740 GUIDE PF
•3V2NM18620 SPRING-TORSION PF
•302M518180 SPRING-TORSION SET
•3V2NM18750 ACTUATOR ORIGINAL
•3V2NM18790 ACTUATOR PF
•3V2NM18260 ACTUATOR TIMING
•3V2NM18580 FRICTION PLATE STOPPER PAPER
•3V2NM18160 HOOK PAPER FEED F
•3V2NM18170 HOOK PAPER FEED R
•3V2NM18760 SPRING HOOK
•3V2NM18520 GUIDE READING
•3V2NM18510 GUIDE LOWER
•3V2NM18900 HOLDER PULLEY
•3V2NM18820 GUIDE SEPARATE
•3V2NM18860 LEVER SEPARATE
•302LV06040 SPRING PICKUP
•3V2NM18120 GUIDE LOOP
•3V2NM18980 LABEL LOOP
•3V2NM18730 GUIDE UPPER
•3V2NM18110 HOUSING CONVEYING
•3V2NM18190 HOLDER PICKUP B
•3V2NM18090 BUSH PF
•3V2NM18690 SHAFT ROLLER PF
•3V2NM18710 GEAR Z18S FEED ROLLER
•3V2NM18780 SPRING-TORSION LF
•3V2NM18632 GEAR Z13S
•3V2NM18610 GEAR PICKUP 18
•3V2NM18650 STOPPER PAPER
•302K306460 BUSH 4
•3V2NM18400 GEAR Z22S ONEWAY
•5AAVCLTCH018 ONE WAY CLUTCH /A-49 MPF A4
•302NM94231 PARTS DRIVE ASSY A SP
••302NM94390 PARTS MOTOR-HB PAPER FEED SP
••303M894260 PARTS SENSOR OPT SP
••303K502200 ACTUATOR BASE
•302NM94240 PARTS DRIVE ASSY B SP
••302KY94140 PARTS MOTOR ROTARY SP
••3V2NM18390 GEAR Z35S
••3V2NM18380 GEAR Z51S-Z17S
•302H024370 BUSH 6 EW
•3V2NM18080 GUIDE WIRE B
•303M894260 PARTS SENSOR OPT SP
•3V2NM18530 GUIDE LOWER LEFT
•3V2NM18270 SHAFT CONVEYING
•3V2NM18250 LEVER REGIST
•3V2NM18280 SPRING-COMPRESSION REGIST A
•3V2NM18290 SPRING-COMPRESSION REGIST B
•3V2NM18240 PULLEY CONVEYING
•3V2NM18950 GEAR Z32S PI

Автоподатчик оригиналов совместим с моделями:
KYOCERA ECOSYS MA4500ifx
KYOCERA ECOSYS MA4500ix
KYOCERA ECOSYS MA4500fx
KYOCERA ECOSYS МА4500х
